[bladesmith]

I am very interested in OB speakers...

Please show me your pics/build/design.... you could even reference a thread to follow...

Thank you...


(I looked around all morning and couldn't find a picture thread, if there is already one, sorry...)

[mcgsxr]

How embarrassing!  This circle has been open for years, and this was never raised!

Here are some pics of my old OB rig.  Visaton b200 mains with Planet10 phase plugs (not in the pics, but added later and excellent) and biamped with Mach t Audio 12 inch subs on 36 wide folded baffles.

If you search for the really long "Gravity well of a Darkstar" thread, I really got in at that time.

[Bob in St. Louis]

you could even reference a thread to follow...

>> DIYAudio "Ultimate OB Gallery" <<
That thread is (at present) 113 pages and 1100 replies.
That should keep you busy for a while.

Bob

p.s. Although, I think for a lot of the pictures to show up, you have to register.
p.p.s. Pictures of mine have worn out their welcome, so I won't bother.

[bladesmith]

No picture thread for Audiocircle....!

[Bob in St. Louis]

No picture thread for Audiocircle....!

Sure there is. You just started one.
I only linked that because you asked for links.

[bladesmith]

Bob,

   Those Perfect8 speakers are very interesting. Makes me think about other possibilities...

Thanks..

[danvprod]

Besty over H-Frame Alpha



Mark Audio 10.3 Over H-Frame Alpha



Mark Audio 10.3 Over H-Frame Alpha and some friends.

[ebag4]

These have been posted here throughout various threads but here are my OB builds:

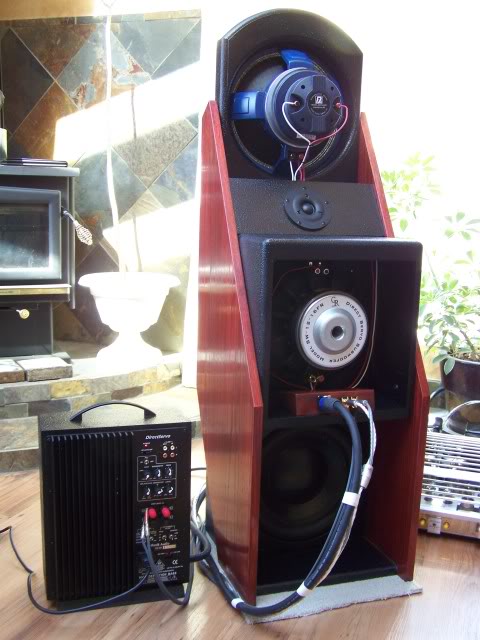

Hawthorne Audio OB


GR Research MTM with Hawthorne Augie Woofer


GR Research V-1

[guest42212]

What it takes to gain an octave

[Guy 13]

Hi all Audio Circle members.

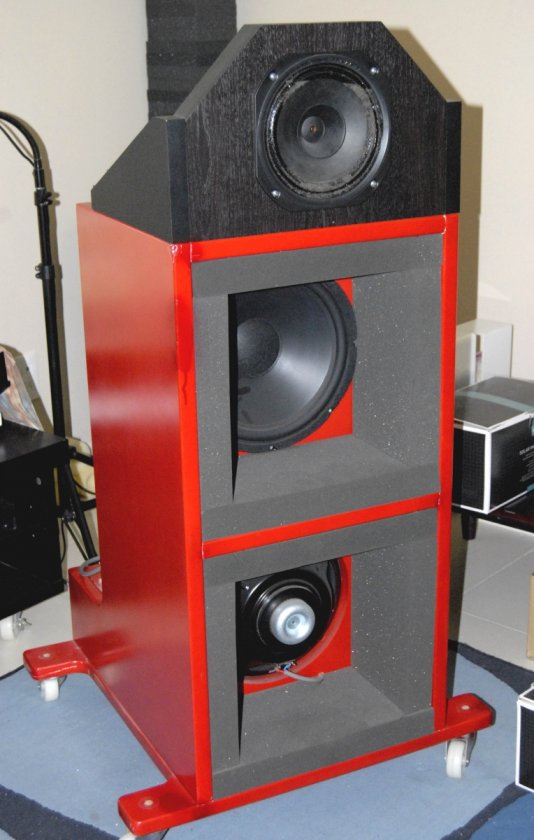

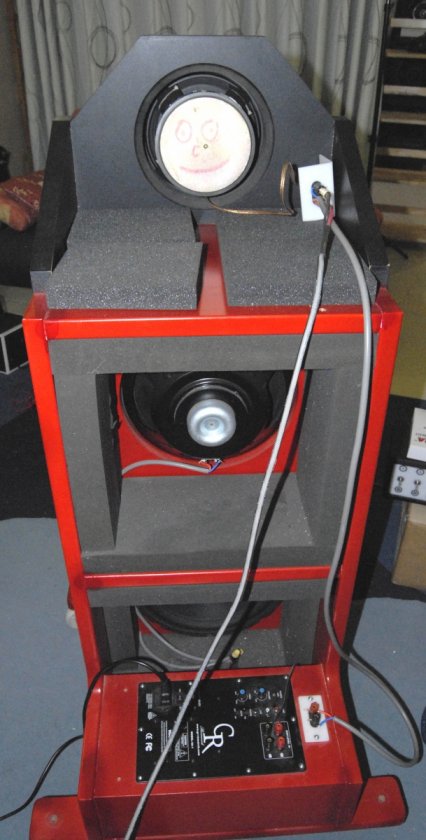

Here are my two pairs of GR Research OB.
(V1 and V2)
Both OB are modified (A little) from the original design.
Very happy with both of them,
even and because they sound different from each other.
Both of them are easy to drive with my Decware SE84C= (2wpc)
and my Niteshade Audio NS-10 SEPentode (10wpc)

Guy 13

[Quiet Earth]

What it takes to gain an octave

Wow! A picture is worth a 1000 words. Great post.

[matevana]

Mini H-Bomb / F-Bomb Usher Combo  (Summer 2013)

[MJK]

My current system, two AE Dipole 15 woofers in offset H frames and a Lowther PM2C on an OB. Biamped with 200 W per channel solid state amps and a dBx Driverack PA active crossover.

[doak]

Hawthorne Audio Sterling Trio

[guest60106]

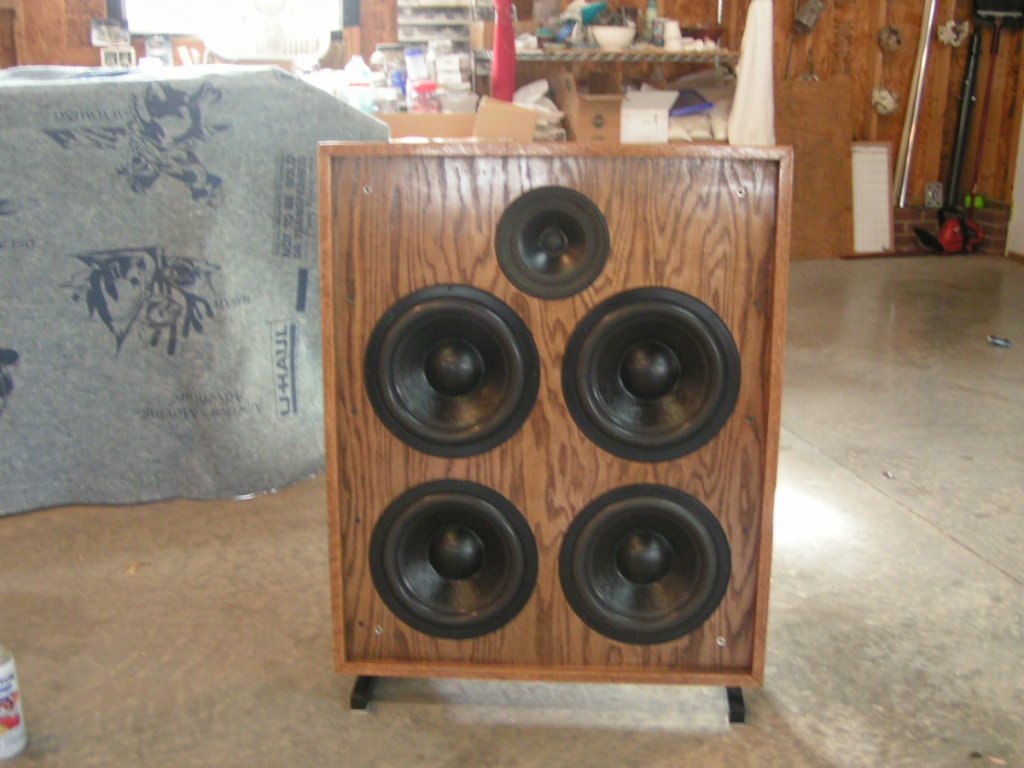

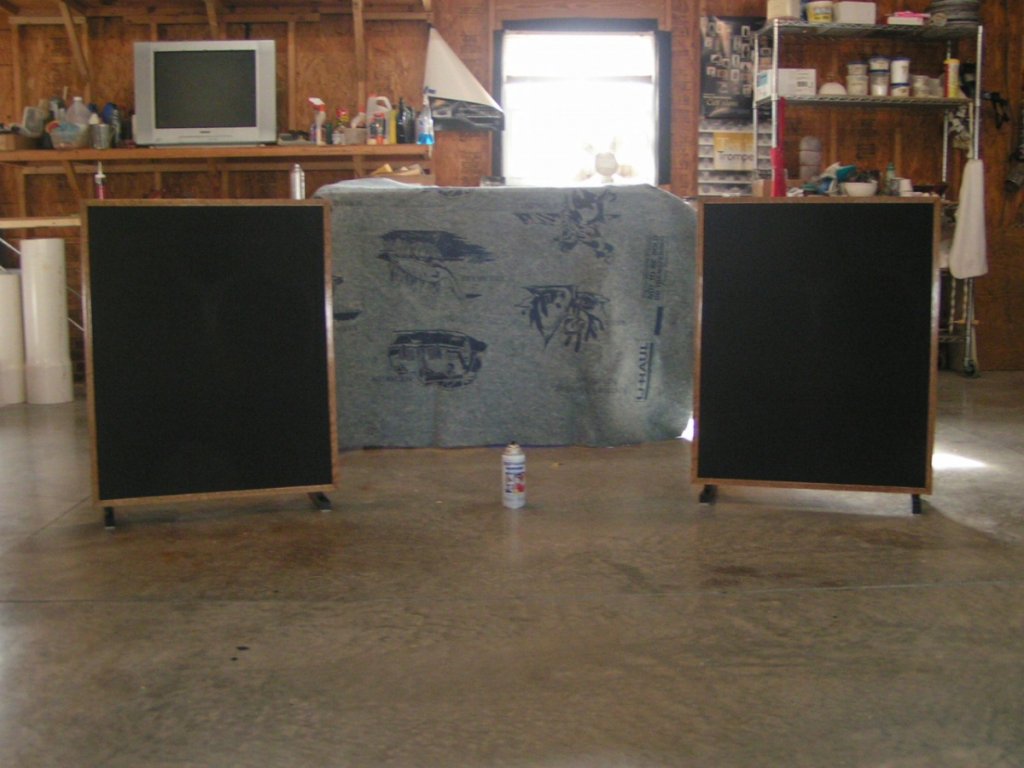

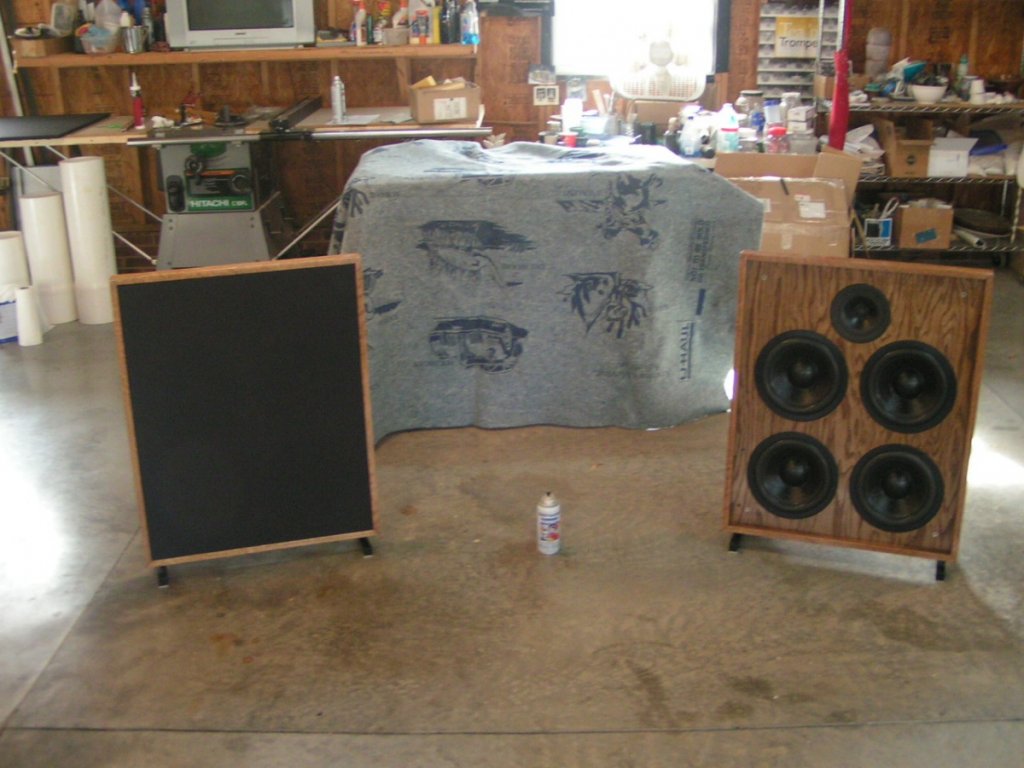

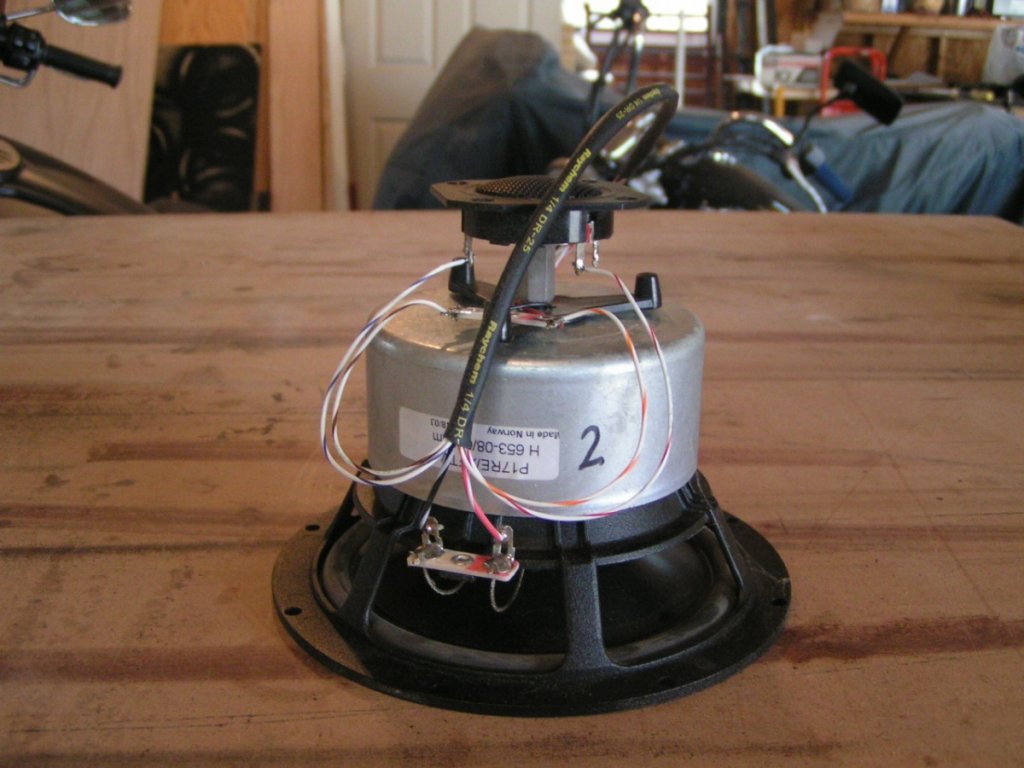

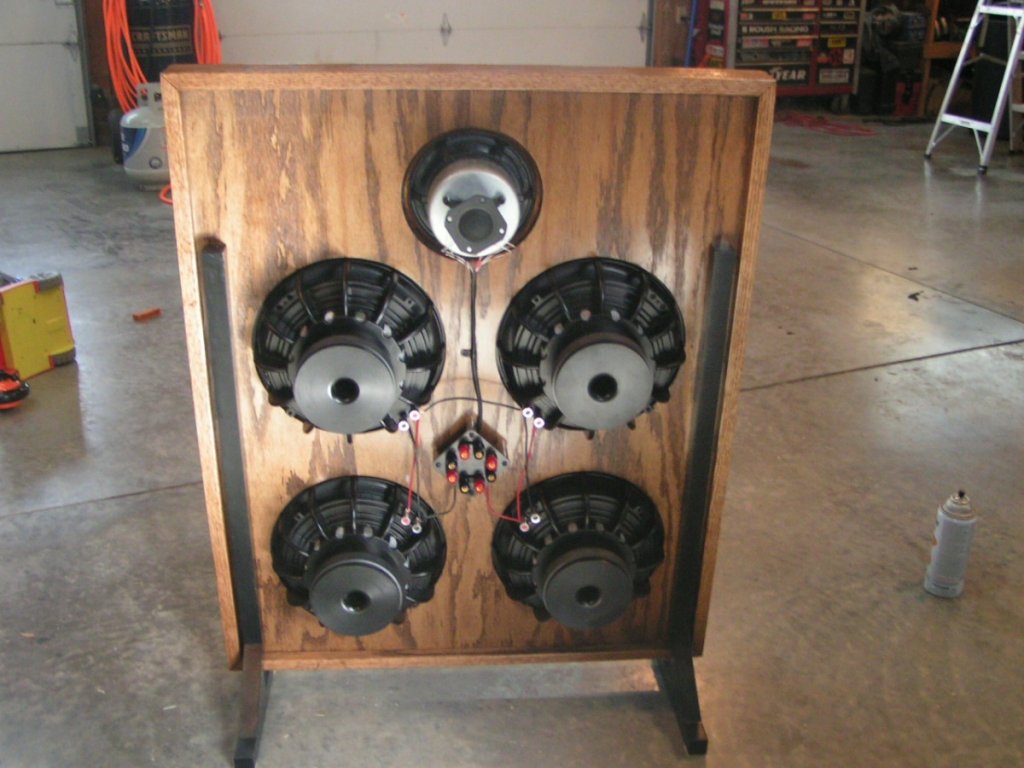

4 Exodus DPL-10s and Seas H653 Coax.

[PDR]

My GR Research V-1s






My GR Research Super Vs

[Bob in St. Louis]

4 Exodus DPL-10s and Seas H653 Coax.

That looks like fun. I'd love to hear those.

[guest60106]

That looks like fun. I'd love to hear those.

Bob,

They sound pretty good. the baffle board is big enough that I don't really need an H-frame. I am working on a new design that is based on the same principals but utilizes a thicker baffle board, adds a mid bass driver making it a 4-way and cuts back the baffle area around the coax. The axial mounted rear tweeter seems to work pretty well.

I will keep the forum posted on the updates.

[AJinFLA]

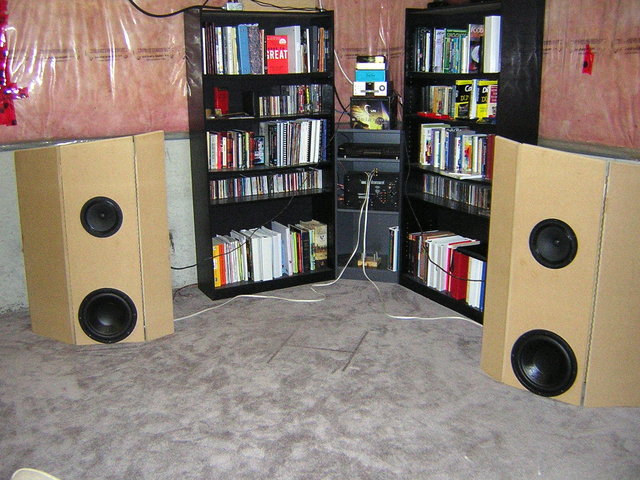

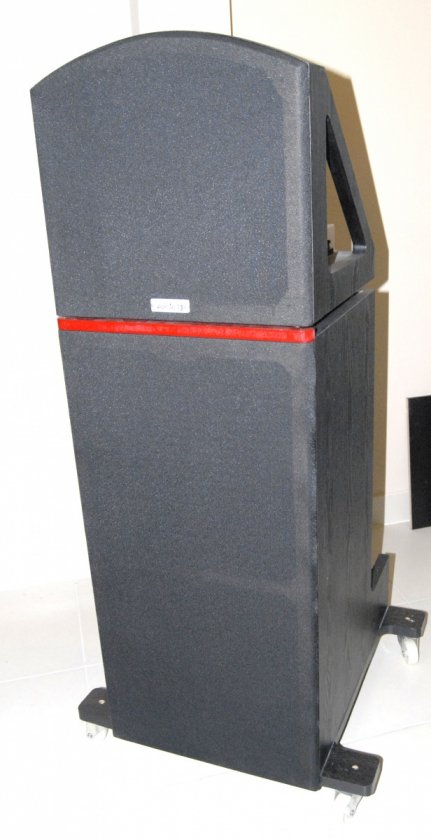

Circa 2004, after hearing some Orions...

[guest60106]

Circa 2004, after hearing some Orions...

Nice
